Price:
$17,800-$18,800 / EA
1 Unit / EA (Min. Order)
Product Description

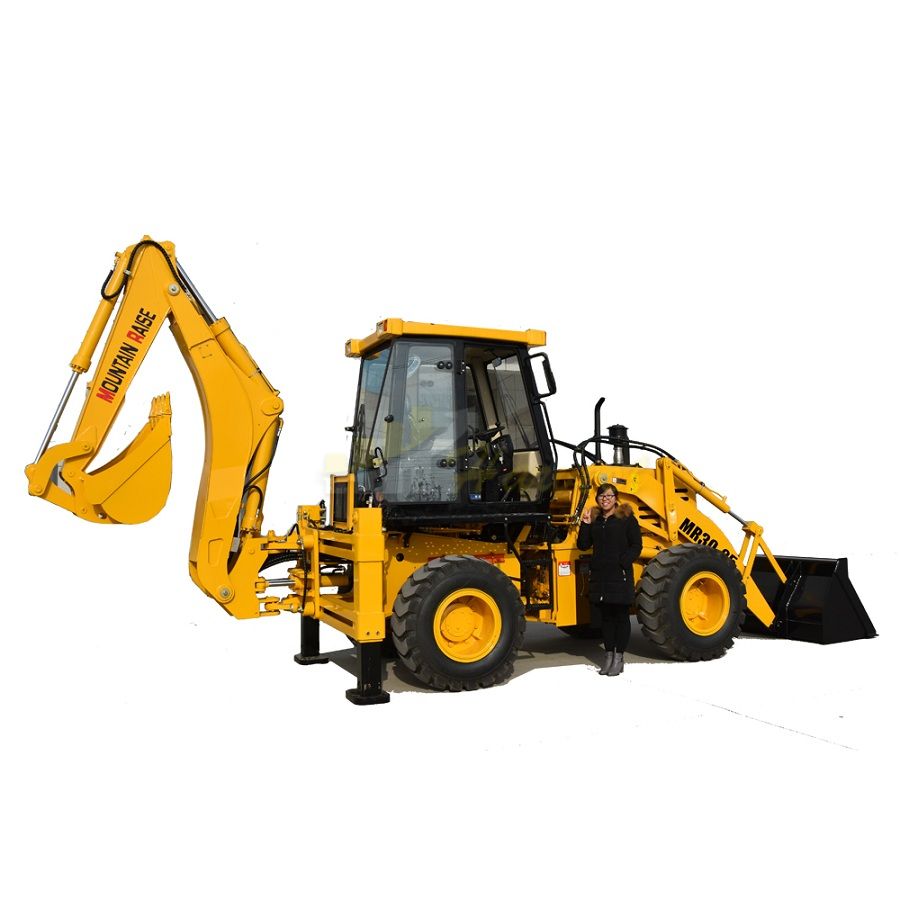

Backhoe Loader MR30-25 for sale
The backhoe loaders are mainly used for municipal, building, water conservancy, road, water, electricity, garden and other departments, engaged in agricultural construction, pipe laying, cable laying, landscaping and other jobs.
1) Domestic famous engine, strong driving force, low fuel consumption.
2) Power shift transmission with hydraulic torque converter, delivers smooth speed and shift.
3) Heavy axle and four wheel driving improves mobility in poor condition.
MR30-25 Heavy Backhoe Loader
1). Full hydraulic transmission. Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission. It enables the machine working efficient and easy to maintenance.
2). High productivity. Super lifting force and automatic leveling at high position.
3). Operation flexible. Center-point frame articulated and small turning radius makes it convenient to work in confined places.
4). Safe and reliable. Single-line air-assisted brake system.
Specification
| Overall Dimension | 6239x2268x3760mm |
| Operate weight | 7800kgs |
| Wheelbase | 2250mm |
| Dumping distance | 1050mm |
| Max. Dumping Height | 2742mm |
| Dumping Distance of Bucket | 1062mm |
| Front Bucket Capacity | 1.0m³ |
| Front Bucket Load | 2500kg |
| Tread Width | 1640mm |
| Mini Ground Clearance | 300mm |
| Departure Angle | 19° |
| Max. Digging Depth | 4503mm |
| Back Bucket Capacity | 0.3m³ |
| Back Bucket Load | 100kg |
| Breakout Force | 38kN |
| Max.Traction Force | 39KN |
| Rotary Angel of Bucket | 190° |
| Hub Reduction Type | One-stage Hub Reduction |
| Engine | |
| Model | YTR4108G60-1 |
| Rated Power | 55kw |
| Pattern | Straight, Direct Injection, Four-stroke, Direct-spraying Combustion Chambe |
| Cylinder Number-Inner Diameter-Stroke | 4-108×120 |
| Rated Rotational Speed | 2400r/min |
| Min. Fuel Consumption | ≤216g/km.h |
| Max. Torque | ≥261.7N.M/1800r/min |
| Displacement | 4.4L |
| Transmisson System | |
| Type | Counter Shaft Power-shift |
| Clutch Pilot Oil Pressure | 1373Kpa—1569 Kpa |
| Gear Number | Two Advance Gears, Two Reverse Gears |
| Max. Speed | 22Km/h |
| Steering System | |
| Steering Gear Model | BZZ5-250 |
| Steering Angle | ±36° |
| Min. Turning Radius | 5018mm |
| System Pressure | 12Mpa |
| Torque Converter | |
| Model | YJ280 |
| Type | Single-stage, Single-phase Three-element |
| Peak Efficiency | 84.40% |
| Inlet Pressure | 0.4Mpa—0.55 Mpa |
| Outer Pressure | 1.2Mpa—1.5 Mpa |
| Cooling Type | Oil Cold Pressure Circulation |
| Drive Axle | |
| Manufacturer | Feicheng Axle Plant |
| Main Drive Type | Double-stage Reduction Type |
| Hub Reduction Type | One-stage Hub Reduction |
| Rated Axle Load | 7.5t |
| Braking System | |
| Parking Brake | Operating Force to Exert Brake,Manual Operating Force to Relieve Brake |
| Service Brake | Air-over-oil Caliper Disc Brake, External, Self-regulation,Self-balancing |
| Tyre Size | |
| Specification | 16/70-20 |
| Air Pressure of Front Tyre | 0.22 Mpa |
| Air Pressure of Rear Tyre | 0.22 Mpa |
| Hydraulic System | |
| Breakout Force of Bucket | 46.5KN |
| Breakout Force of Bucket Rod | 31KN |
| Lifting Time of Bucket | 5.4S |
| Fall Time of Bucket | 3.1S |
| Dumping Time of Bucket | 2.0S |
