Price:
$63,000-$65,000 / EA
1 Unit / EA (Min. Order)
Product Description
The all-purpose customer choice
Engine model: Shangchai SC11CB184G2B1/Weichai WD10G178E25
Net power: 120 kW/160HP/1850 rpm
Operating weight: 17t

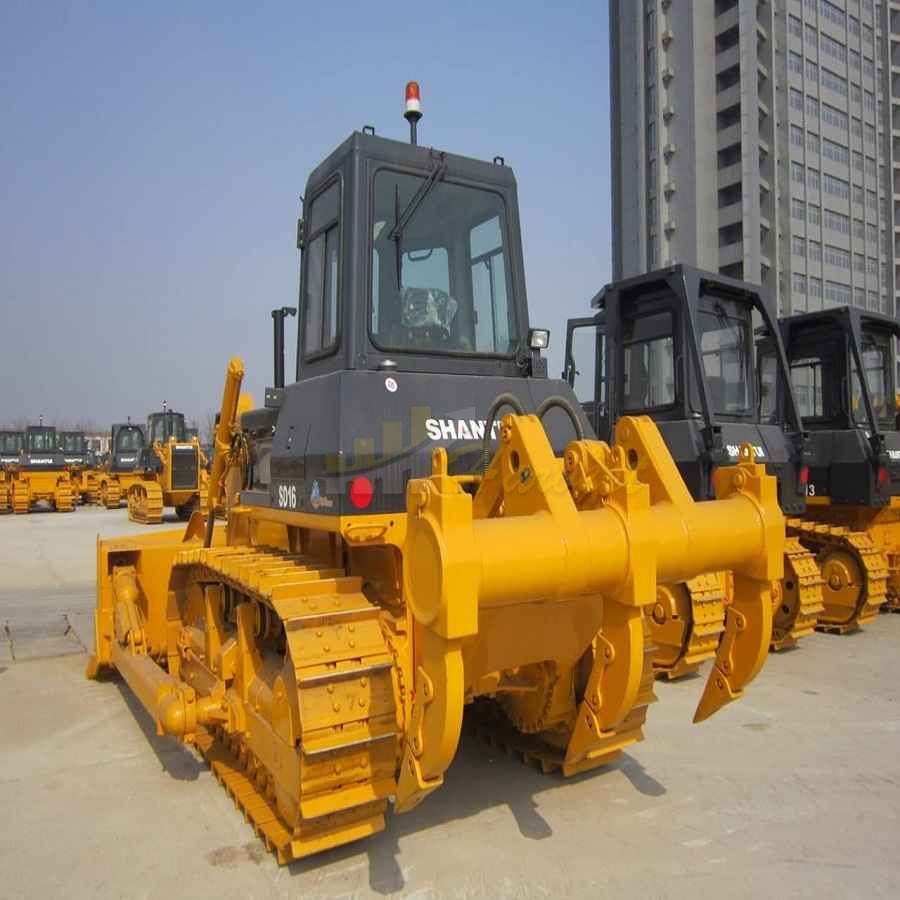

Shantui's best selling model in the world, & this is a medium-duty workhorse that comes off the factory line in various configurations for specific work environments, e.g., desert, swamp, forest, high altitude, etc. It has a Tier IIIb Cummins engine for European markets and optional engines (Weichai and Shangchai) for other markets. The SD16 provides high performance with strong reliability, with Shantu's trademark value.
Specification
| MODEL | SD16 | ||
| PERFORMANCE PARAMETERS | Operating Weight (kg) | 17000 | |
| Rated horsepower (kw/hp) | （120/160） | ||
| Minimum turning radius (mm) | 4466 | ||
| Ground pressure (kpa) | 58 | ||
| ENGINE | Model | Weichai WP10G178E355/Shangchai SC11CB184G2B1 | |
| Emission | China II | ||
| Type | In-line,direct injction,4-cycles,water cooled,turbocharged | ||
| No.of cylinders×Bore×stroke （mm×mm） | 6-126×130/6-121×152 | ||
| Piston displacement (L) | 9.726/10.5 | ||
| Horsepower/rpm （kw/rpm） | 131/1850,135/1850 | ||
| Maximum torque (N.m/r/min) | 764/1300 | ||
| DIMENSIONS | Length（mm）X Width（mm）X Height（mm） | 5140×3388×3032 | |
| TRAVELING PERFORMANCE | Forward（km/h） | F1:0~3.29 | |
| F2:0~5.82 | |||
| F3:0~9.63 | |||
| Reverse（km/h） | R1:0~4.28 | ||
| R2:0~7.59 | |||
| R3:0~12.53 | |||
| Gradeability（deg） | 30° | ||
| Clearance（mm） | 400 | ||
| TRANSMISSION | Torque convertor | 3-element, single stage, 1-phase | |
| Gear box | Planetary gear and powershift transmission, hydraulically actuated, forced lubrication | ||
| Main drive | Spiral bevel gear, single-stage speed reduction, splash lubrication | ||
| Steering clutch | Wet multiple disc,coned disc spring loaded, hydraulically actuated, hand operated,interconnected with steering brake | ||
| Brake | Wet, contracting band,foot operated with hydraulic booster | ||
| Final driver | spur gear,double reduction ,splash lubrication | ||
| UNDERCARRIAGE | Suspension | Swing type of sprayed beam,suspended structure of equalizer bar | |
| Track gauge (mm) | 1880 | ||
| Shoe width (mm) | 510（560、610） | ||
| Track length on ground (mm) | 2430 | ||
| Number of shoes (each side) | 37 | ||
| Pitch (mm) | 203 | ||
| Carrier rollers (each side) | 2 | ||
| Track rollers (each side) | 6 | ||
| WORKING HYDRAULIC SYSTEM | Pressure（Mpa） | 14 | |
| Working pump | Gear pump | ||
| Valve | Multi-way valve | ||
| Bore of blade lift cylinder (mm) | Φ110 | ||
| Bore of blade tilt cylinder (mm) | Φ160 | ||
| Bore of ripper lift cylinder(mm) | Φ160 | ||
| TANK CAPACITY | Fuel tank capacity (L) | 315 | |
| Working hydraulic tank capacity (L) | 110 | ||
| WORKING EQUIPMENT | Blade width (mm) | 3388 | |
| Blade height (mm) | 1149 | ||
| Blade capacity (m³) | 4.5 | ||
| Max.Drop below ground of blade | 540 | ||
| Lift height of blade | 1095 | ||
| Maximum lifting height of ripper (mm) | 572 | ||
| Maximum digging depth of ripper (mm) | 592 | ||
