HOWO A7 10 Wheeler Dump Truck

Price:

$38000-$40000 / EA

1 Unit / EA (Min. Order)

Payment Terms:

Delivery time: 25-30 Days

Shipping: Container Flat Rack Roro

Inquire Now Next Product

Product Description

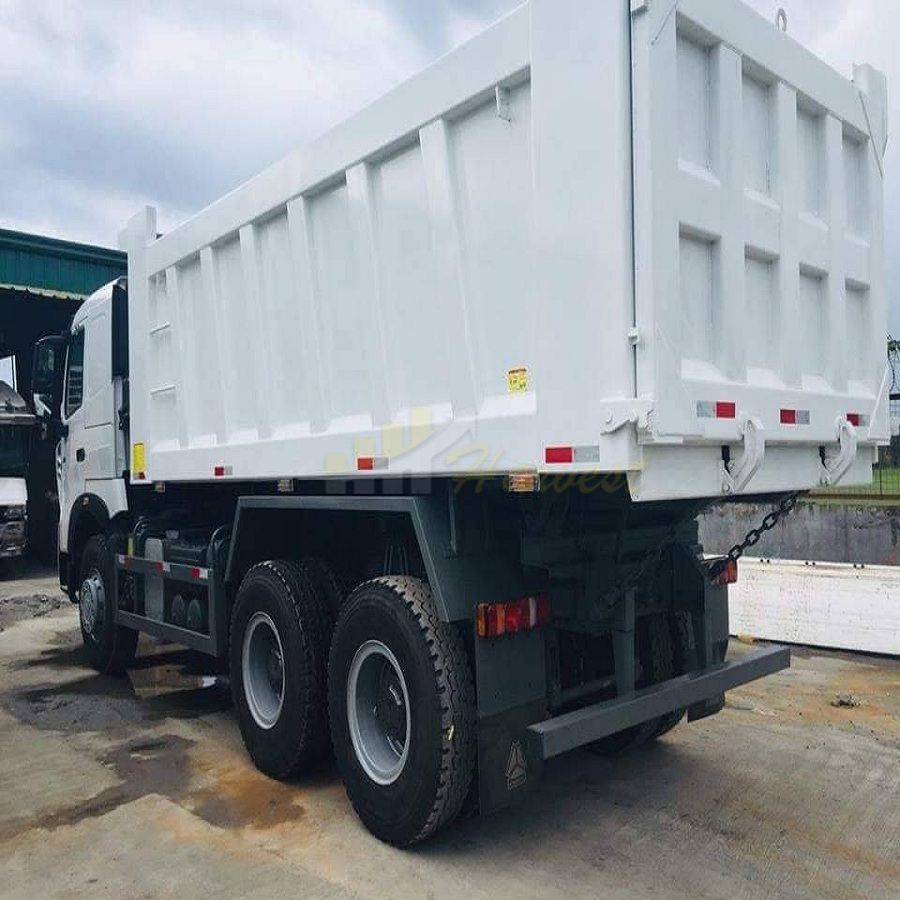

Hot Sale 6x4 Dump Truck of HOWO A7
Hot Sale of new type A7 Dump truck 6*4
It is a mature model of SINOTRUK with the reliable and stable structure design, high bearing capacity, excellent engine force and highly stable performance, with its fame forged in construction and mining industries with adverse operating environments, available for the short-range earthwork transportation tasks for mines and construction projects.


Specification

SINOTRUK HOWO A7 6x4 DUMP TRUCK
Manufacture	Made in 2019 year		CNHTC, China
Body	Carriage Internal Dimensions(mm)		5600x2300x1500
	Size (m3)		20m3 ( 16-21m3 for option )
	Steel thickness of Carriage(mm)		Floor: 8mm/Side: 6mm
	Steel		Q235
	Hydraulic Lift of Carriage		Middle Lift ( HYVA cylinder or front lift for option )
Weight in kg	Kerb weight (Kg)		12770
	Loading capacity (Kg)		30000
Dimensions	Dimensions	Length(mm)	8645
		Width(mm)	2550
		Height(mm)	3450
	Wheel base (mm)		3800+1350
Performance	Maximum driving speed (km/h)		75
	Fuel consumption (1/100 km)		35
Cab	Model		SINOTRUK HW76 Lengthen cab
	single bunk, new type seat, adjustable steering wheel, EURO new type heating & ventilating system, Germany VDO instruments, safety belts, exterior sun visor, stereo radio/cassette recorder, left driving, air conditioner
Engine	Model		CNHTC D10.38-40(Euro IV)
	Type		6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
	Horsepower		380hp (420hp for option )
	Maximum output Kw/r/min		276/2000
	Maximum torque N.m/r/min		1560/1200-1500
	Make SINOTRUCK (CNHTC), Euro IV emission standard, Thermostat with 80ºC opening begin, Rigid fan
Transmission	SINOTRUK HW19710 transmission , 10 forward and 2 reverse
	I II III IV V VI VII VIII IX X
	14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.80 1.34 1
	R1-13.91 R2-3.18
Clutch	SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
Steering	ZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving), ( ZF8098 RHD right hand drive for option )
Front Axle	SINOTRUK HF9 Front Axle,new 9-ton front axle of equipped with drum brakes.
Rear Axles	SINOTRUK HC16 Heavy reduction drive axle, STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio: 5.73;
Brake System	Service brake:dual circuit compressed air brake Parking brake (emergency brake):spring energy,compressed air operating on rear wheels
Wheels & Tyres	Rims: 10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire.( tubeless for option )
Oil Tank	Square type-300L Aluminum alloy fuel tank
