Price:
$37600-$38500 / EA
1 / EA (Min. Order)
Product Description

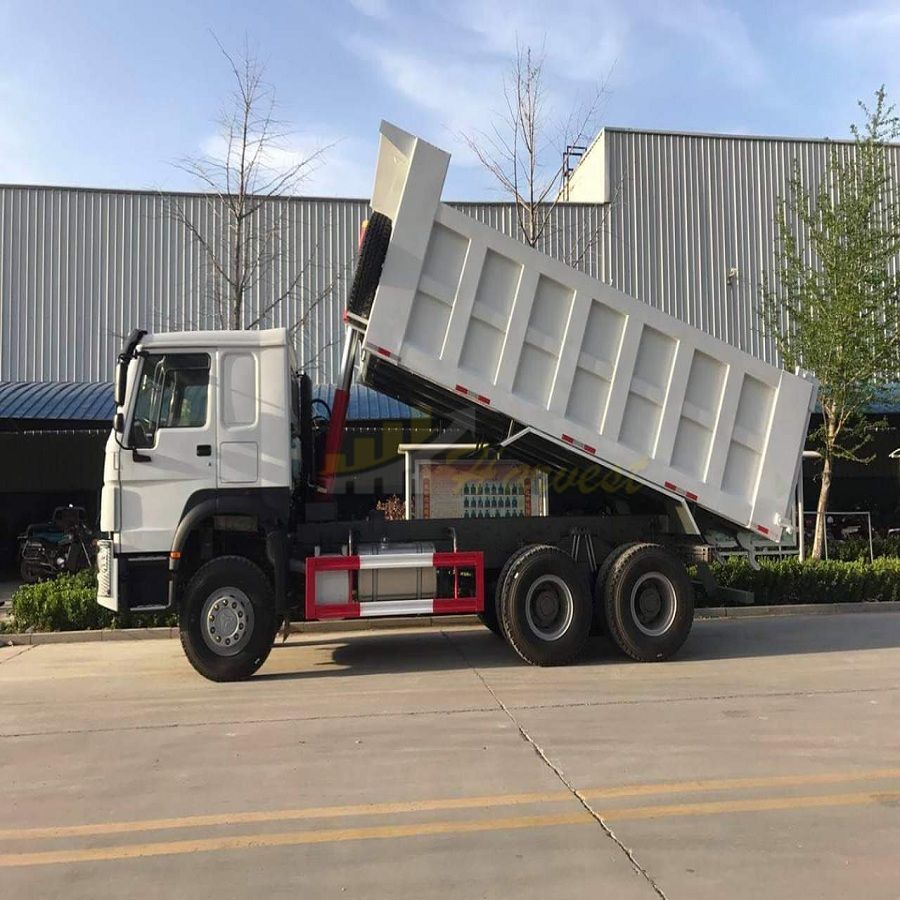

HOWO 6X4 371HP 20 Cubic Meters SINOTRUK Dump Truck
The popular dump truck models include: sinotruk HOWO 336hp 6X4 10 wheel 16 cubic meters dump truck, sinotruk 371hp 10 wheeler 30 tons 20
cubic meters tipper, SINOTRUK howo 8X4 12 wheeler 40 tons 28cbm, 30cbm, 33cbm & 36cbm dumper.
According to clients' requirements, we can customize different loading capacity, dump box, color & put logo of customers' company.
Specification
| SINOTRUK HOWO 6x4 DUMP TRUCK | |||
| Manufacture | Made in 2019 year | CNHTC, China | |
| Body | Carriage Internal Dimensions(mm) | 5600x2300x1500 | |
| Size (m3) | 20m3 ( 16-21m3 for option ) | ||
| Steel thickness of Carriage(mm) | Floor: 8mm/Side: 6mm | ||
| Steel | Q235 | ||
| Hydraulic Lift of Carriage | Front Lift ( HYVA cylinder or middle lift for option ) | ||
| Weight in kg | Kerb weight (Kg) | 12770 | |
| Loading capacity (Kg) | 30000 | ||
| Dimensions | Dimensions | Length(mm) | 8645 |
| Width(mm) | 2550 | ||
| Height(mm) | 3450 | ||
| Wheel base (mm) | 3800+1350 | ||
| Performance | Maximum driving speed (km/h) | 75 | |
| Fuel consumption (1/100 km) | 35 | ||
| Cab | Model | SINOTRUK HW76 Lengthen cab | |
| single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner | |||
| Engine | Model | CNHTC WD615.47(Euro II) | |
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | ||
| Horsepower | 371hp ( 336hp ,420hp for option ) | ||
| Maximum output Kw/r/min | 247/2200 | ||
| Maximum torque N.m/r/min | 1350/1300-1600 | ||
| Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80ºC opening begin, Rigid fan | |||
| Transmission | SINOTRUK HW19710 transmission ,10 forward and 2 reverse | ||
| I II III IV V VI VII VIII IX X | |||
| 14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.80 1.34 1 | |||
| R1-13.91 R2-3.18 | |||
| Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance | ||
| Steering | ZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving), ( ZF8098 RHD right hand drive for option ) | ||
| Front Axle | SINOTRUK HF9 Front Axle,new 9-ton front axle of equipped with drum brakes. | ||
| Rear Axles | SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers. | ||
| Brake System | Service brake:dual circuit compressed air brake Parking brake (emergency brake):spring energy,compressed air operating on rear wheels | ||
| Wheels & Tyres | Rims: 10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire.( tubeless for option ) | ||
| Electrics | Operating voltage:24V,negative grounded Starter:24V,7.5 Kw Alternator:3-phase,28V,1500 W Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light. | ||
| Oil Tank | Square type-300L Aluminum alloy fuel tank | ||
| OPTIONS | Revolving Light on roof of cab | ||
| RHD right hand drive | |||
| Upper body | bucket shape body for heavy good,big size stones etc | ||
| U shape body bulk cargo , ore and other goods | |||
| Tubeless tires: 12R22.5 ,315/80R22.5 etc | |||
| Brake water spray | |||
| ABS, EVB engine brake | |||
