XCMG 5ton Hydraulic New Front End Wheel Loader LW500FN for sale

Price:

Negotiable / EA

1 Unit / EA (Min. Order)

Payment Terms:

Delivery time: 7-10 Days

Shipping: Container Flat Rack Roro

Inquire Now Next Product

Product Description

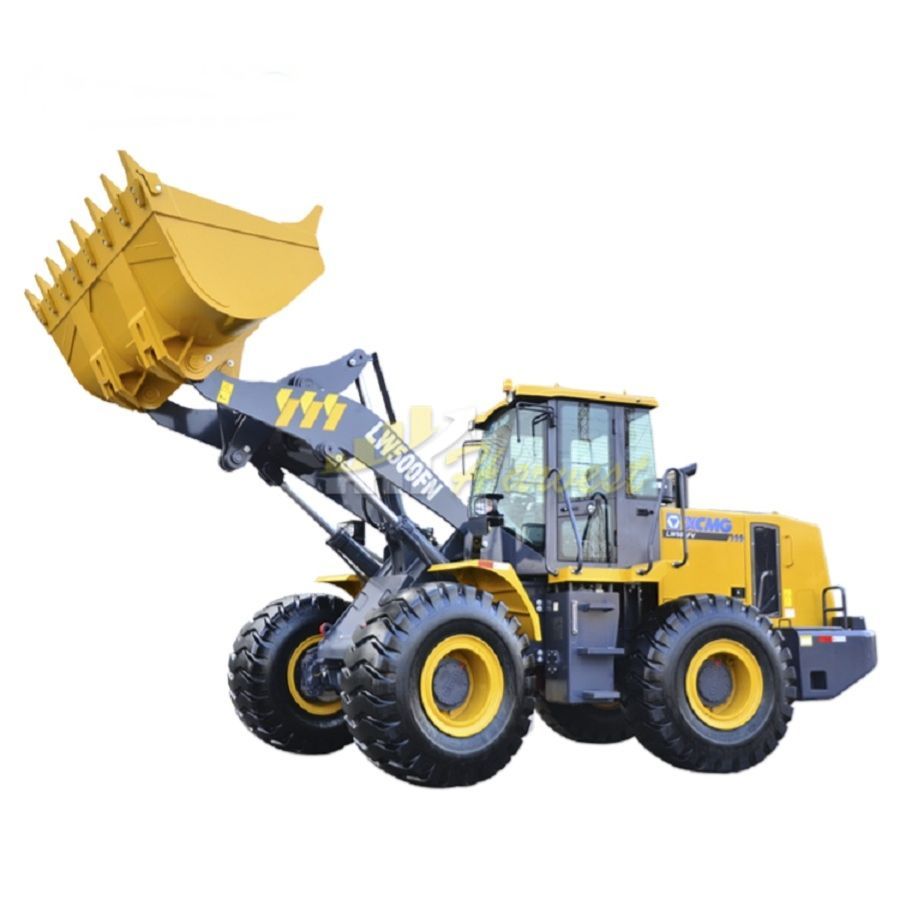

XCMG 5ton Hydraulic New Front End Wheel Loader LW500FN for sale

LW500FN wheel loader is set by ten years of professional experience, the new high efficient and energy-saving products to create, is the latest cross-generation product developed by on the basis of the globalized technologic resources.

Focusing on the customer value and enphasizing the customers experience, new generation loader boasts outstanding advantages(such as efficiency) in the field of engineering constructions, aggregate yards, and coal logistics.

1. High torque and high efficiency drive chain features reasonable matching.

2. The 170kN traction force and ≥3.5m high dumping capacity handle the severe conditions with ease.

3. This engine meets the instant overload demand during operations and sufficiently provides the power required for heavy-load operations.

4. The air-assisted hydraulic four-wheel caliper brakes feature stable braking and high safety and reliability.

5. The easy and convenient daily maintenance ensure that the machine is under the best ready status at all times.

Main parameter

1. Rated load: 5 ton

2. Bucket capacity : 3.0cbm

3. WEICHAI 162kW engine

4. Mechanical operation with 2 levers

5. Air conditioning cabin

6. 23.5-25 tyres

Optional parts

grasping grass pliers / Sliding fork / Standard bucket/ Side dumping

Packing & Loading

1 40ft container can load 1 unit/by roro/by flat rack


XCMG 5ton Hydraulic New Front End Wheel Loader LW500FN for sale

Specification

Description	Unit	Parameter value
Rated operating load	kg	5000
Bucket capacity	m³	3.0
Machine weight	kg	16900
Dump clearance at maximum lift	mm	3150~3560
Reach at maximum lift	mm	1100~1190
Wheel base	mm	2960
Tread	mm	2250
Height of hinge at maximum lift height	mm	4112
Working height(fully lifted)	mm	5510
Engine	WEICHAI 162kW WD10G220E21, Euro II
Max.breakout force	kN	170
Hydraulic cycle time-raise	s	≤6
Total hydraulic cycle time	s	≤10.5
Min. turning radius over tyres	mm	5950
Articulation angle	°	35
Gradeability	°	28
Tyre size	23.5-25-16PR
Overall machine dimension L×W×H	mm	7910×3016×3515
