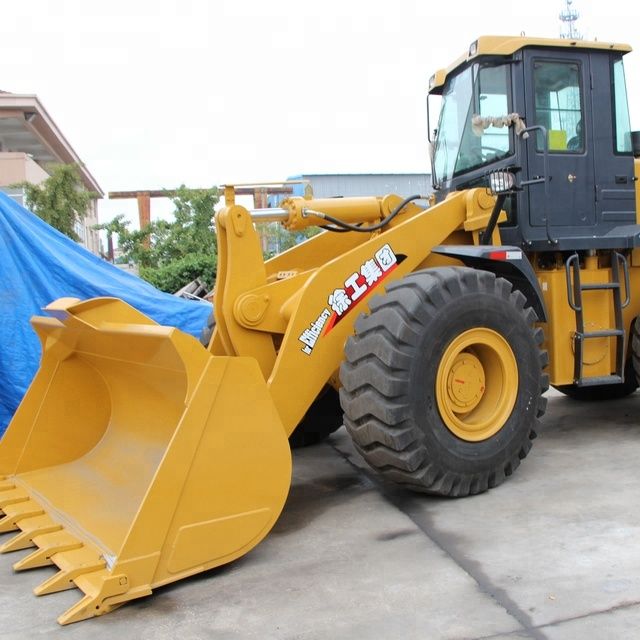

XCMG Mining 5 Ton Wheel Loader LW500KN Shovel

Price:

$31900-$46800 / EA

1 Unit / EA (Min. Order)

Payment Terms:

Delivery time: 20-25 Days

Shipping: Container Flat Rack Roro

Inquire Now Next Product

Product Description

LW500KN Wheel Loader

1. Heavy-load design, robot welding, thick plate, secure welding joint, high anti-torque coefficient and high overload capacity. Technology of finite element analysis is employed to decrease stress concentration and eliminate local weaknesses. Frame is resistant to impact and overload and capable in various overload working conditions.

2. Alignment design of main hinge joint decrease s turn radius and reduces tire wear and energy loss. Large spacing between upper and lower hinged plates, high structural strength and sufficient repair space. The first manufacturer to apply double-row tapered roller bearing to main hinge joint, featuring strong bearing capacity and long service life.

3. Implementation of“service throughout full life cycle” brings about trouble-free lifetime experience! Marketing service network spread around the world covers extensive areas.

4. First-rate hydraulic element, featuring low pressure loss, little system radiation and high part reliability. Hydraulic pump of international brand provides stronger hydraulic power. Italian α hydraulic hose featuring resistance to heat and pressure, and long service life. Two layers of sealing, i.e. 24° cone plus O-ring up to DIN international standard are employed for hydraulic pipeline, which features better tightness and effectively resolves the issue of leakage. Imported materials are used for harness with optimized process layout for guaranteeing circuit system reliability.


Specification

Parameter		Specifications	Unit
Operating weight		21000	kg
Rated power		162	kw
Rated lifting capacity		18	t
Fork size(LxW)		1500x1014	mm
Loading capacity at highest position		14000	kg
Gradeability	Unloaded	15	°
Gradeability	Full-load	23	°
Working device actuation time	Lifting under rated load	≤8.5	s
	Forward tilting of forks	≤1.0	s
	Lowering under no-load	≤6.5	s
	Total cycle time	≤16	s
Tire specification	Front wheels	23.5-25-24PR	-
Tire specification	Rear wheels	23.5-25-20PR	-
Overall dimensions(LxWxH)		8180x2950x3515	mm
Max. machine height		4470	mm
Dumping height(22.5°)		2410	mm
Dumping range(22.5°)		1900	mm
Max. lifting height		3050	mm
Material transport height		480	mm
Turning radius	Tire center	6600	mm
Turning radius	Material transport of forks	6440	mm
Wheelbase		3410	mm
Wheel tread		2350	mm
