Price:
$28,000-$30,000 / EA
1 Unit / EA (Min. Order)
Product Description

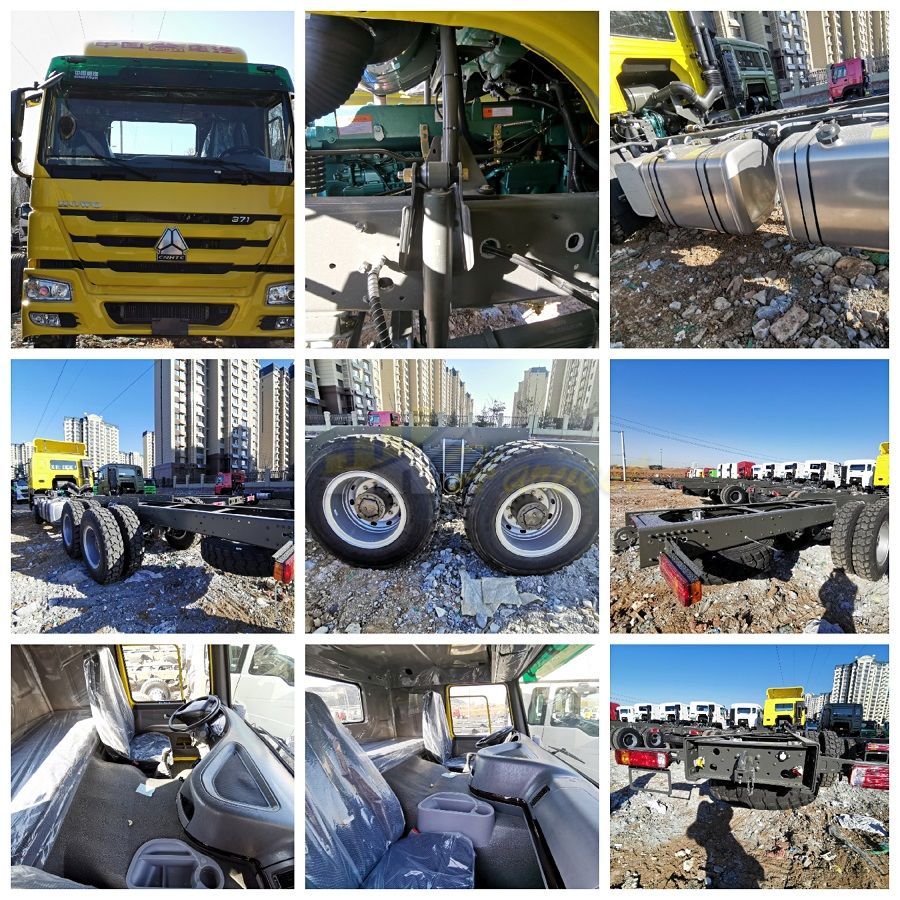

Sinotruk Howo 6x4 371hp Cargo Chassis without cargo body
Chassis Model: ZZ1257N5847W
Engine: WD615.47, 371hp, Euro II
Cabin: HW76, 2 seats & 1 sleeper, with A/C & deflector(cabin hat)
Front Axle: HF9(drum). 1x9 ton loading capacity
Rear Axle: HC16(drum), 2x16 ton loading capacity
Transmission: HW19710, 10 forwards & 2 reverse
Steering: ZF8118 hydraulic steering with power assistance
Tires: Radial 12.00R24, 10pcs+1 spare tire, with 2 U-Pull
Oil Tank: 400L+400L
Others: with trailer system
Color: yellow, white, blue, red for option
Payment Terms: 30% deposit and balance before shipping
Delivery Time: 10 to 15 days
Shipping: by bulk vessel or roro
Warranty: one year
Specification
Chassis Model: ZZ1257N5847W | |
Cabin | HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner with transverse stabilizer, with 4-point support fully floating suspension + shock absorber and deflector(cabin hat) |
Engine | Make: SINOTRUKDiesel 4-stroke direct injection diesel engine, Engine Model: WD615.47, Euro2, 371hp 6-cylinder in line with water cooling, turbo-charging & intercoolingDisplacement: 9.726L |
Transmission | HW19710,10F and 2 RRatio: 14.28, 10.62, 7.87, 5.88 , 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
Steering | ZF power steering, model ZF8118, hydraulic steering with power assistance. |
Front Axle | HF9, 1x9000KGS steering with double T-cross section beam |
Rear Axles | HC16, 2x16000KGSPressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles Ratio: 4.8 |
Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross membersFront suspension: 10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizerRear suspension: 15 leaf semi-elliptic springs, bogie spring and stabilizer |
Brake System | Service brake: dual circuit compressed air brakeParking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheelsAuxiliary brake: engine exhaust brake |
Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 KwAlternator: 3-phase, 28 V, 1500 WBatteries: 2 x 12 V, 165 AhCigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
Tires | 12.00R24, radial tires with one spare tire. With 2 U-Pull. |
Oil Tank | 400L+400L |
Overall Dimension | 12100x2500x3300mm |
Others | With Trailer System |
