Price:
$14,000-$14,500 / EA
1 Unit / EA (Min. Order)
Product Description

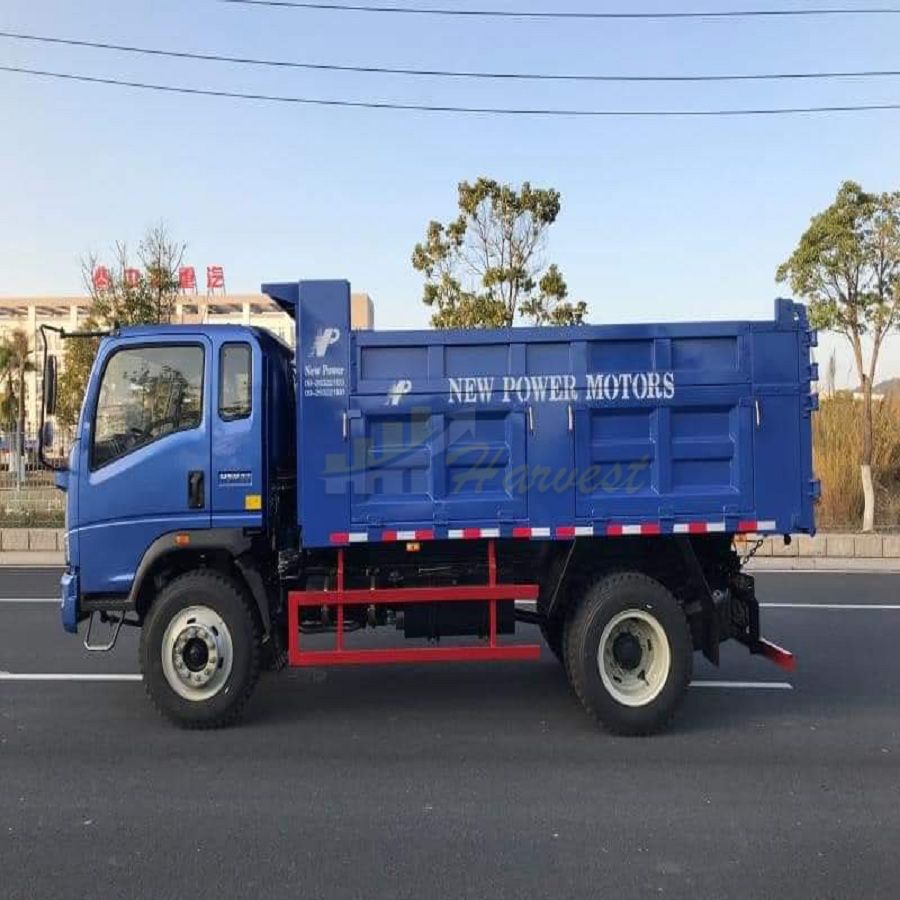

Howo Small Dump Trucks 10 ton for sale
Cabin: 2080 Extended cabin, with 2 seats and 1 sleeper, with A/C, Radio FM with USB
Driving type: 4x2 left hand driving
Overall dimension: 6400×2400×2730mm
Wheel base: 3650mm
Payload: 10 ton
Engine brand: YUCHAI
Model: YC4D130-33 Euro 3 Diesel, 4-cylinder, inline, injection , pressurize, intercoolers
Horse power: 130hp
Gearbox: WLY653H, 6 forwards & 1 reverse
Steering: power steering
Tire: 9.00R20, 7pcs including 1 spare tire
Brakes service brake: dual circuit compressed air brake
Auxiliary brake: Exhaust brake, Clutch booster
Body dimension: 4200*2200*(800+400)mm
Body thickness: bottom 5mm, side 3mm.
With five doors.
Hydraulic system: middle tipping
Specification
Overall Dimension | Overall dimensions (L x W x H)mm | 6400×2400×2730 |
Wheel base (mm) | 3650 | |
Weight in KGS | Tare Weight | 6840 |
Payload | 10 ton | |
Front axle | 145D | |
Rear axle | 153S | |
Max. driving speed(km/h) | 85 | |
Engine | Brand | YUCHAI |
Model | YC4D130-33 | |
Type | Euro-2 emission, intercooler, turbocharge | |
Horse Power | 130hp | |
Max Torque | 420 N.m | |
Gearbox | WLY653H, 6 Forwards & 1 reverse | |
Brake | dual circuit compressed air brake | |
Steering | power steering | |
Tire | 9.00R20, all steel radial tyre with 1 spare tire | |
Cargo Body | 4200 x 2200 x 1200mm, bottom 5mm, side 3mm | |
Lifting System | middle lift cylinder |
