Price:
$8,000-$12,000 / EA
1 Unit / EA (Min. Order)
Product Description
Main Features
1. Torsion - resistance of side beam and Main Beam are with "I" high strengh steel. more durable than normal trailer steel to ensure low bed trailer driving stability and handle bed roads.

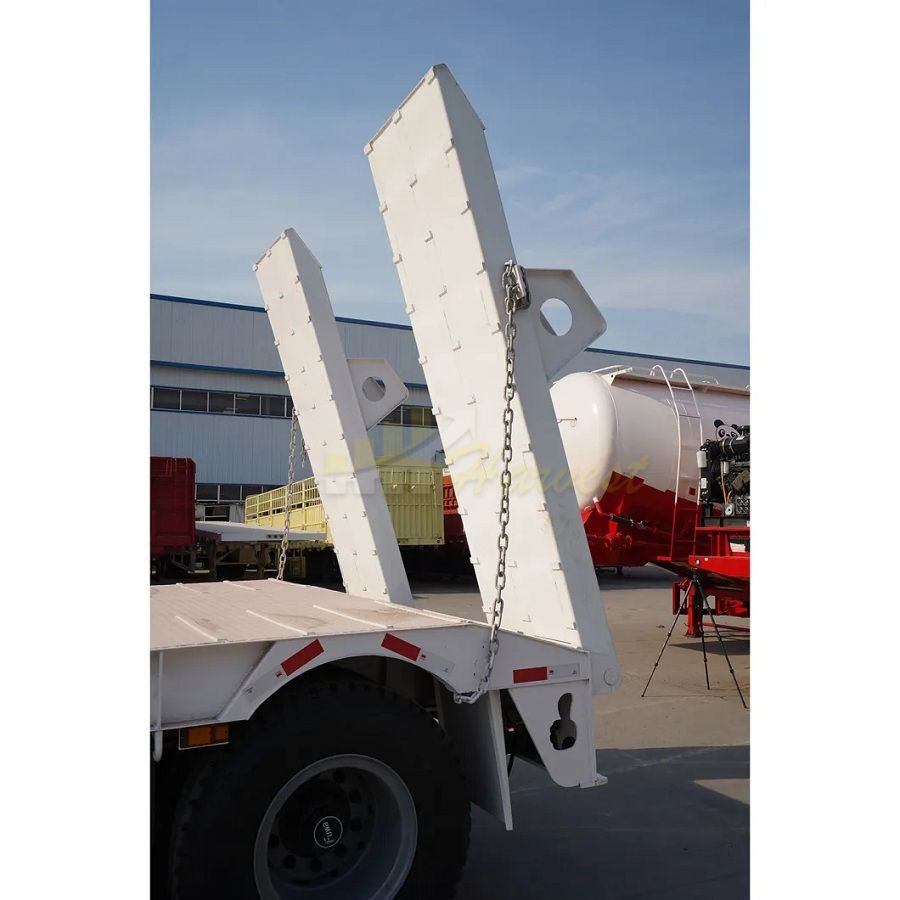

2. Heavy duty type ramp: manganese plate butt welding, This design that ensure the ramp support the heavy duty marchine safely.
3. Stability when loading heavy duty marchine. Our low bed trailer can equipped with extra legs on the rear of trailer. This will enable you to load machines safely
According to clients' requirements, we can customize different axles and loading weight.
The popular lowboy trailer models as follows:
2 axles 40 ton lowbed semi trailer
3 axles 60 ton low bed truck trailer,
3 axles 80 ton low loader trailer
3 axles 100 ton lowbed truck trailer
2 line 4 axles 60 ton lowbed trailer
3 line 6 axles 120 ton low bed trailer
Specification

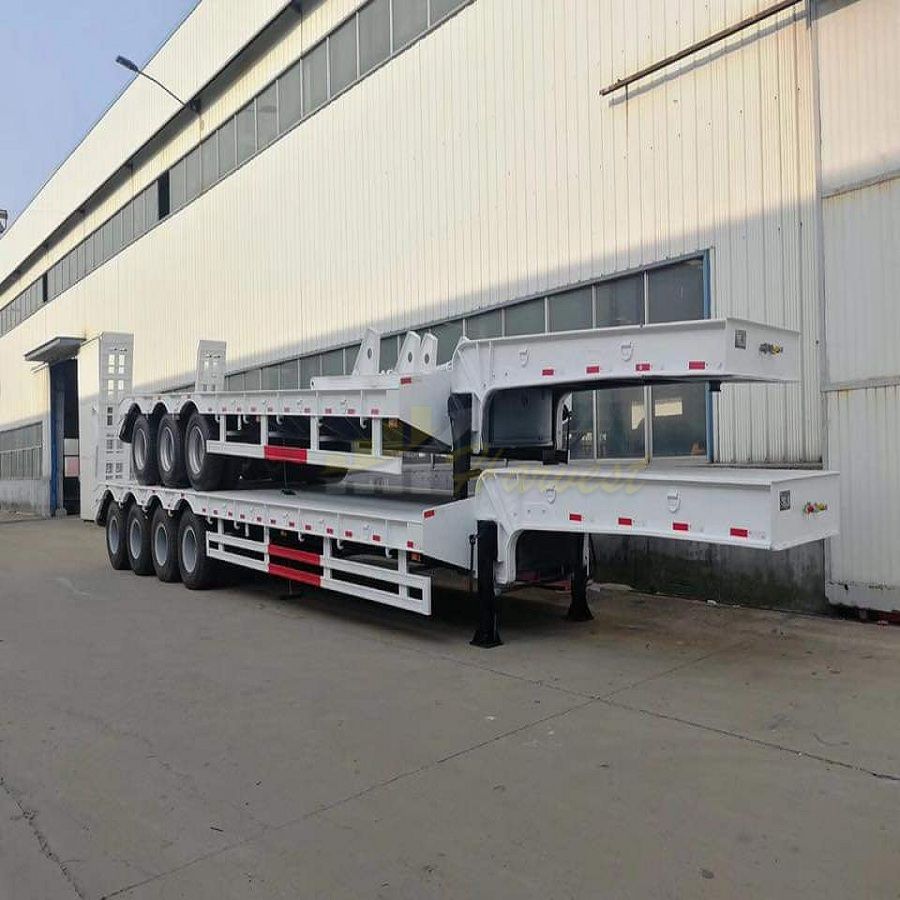

| Type | 3 Axles Low bed semi trailer |
| Loading Capacity | 40-60 tons |
| Axle | 3 pieces, 13T FUWA/BPW axle |
| Tyre | 12 pieces, 10.00R20 |
| Dimensions(LxWxH) | 13000 -17000mm x 3000 x 1750mm |
| Tare weight | 10 tons to 12 tons |
| Axle spacing | 1310mm |
| Rims | 8.5-20, 9.0-20 |
| Suspension System | Leaf spring suspension / air suspension |
| Brake System | Dual line pneumatic brake system with WABCO emergency relay valve |
| Main Beam | Height 500mm Q345 carbon steel |
| Chassis | upper 20mm, lower 20mm. Mid web 12mm |
| Rear Loading Ramps | 2 nos, 720 mm width, spring loaded & manually operated with safety chain |
| Kingpin | 2' or 3.5' interchangeable,JOST brand |
| Landing Gear | 28 Tons , Two speed manual operation |
| Electrical System | 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard |
| Lights and Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
| Painting | Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm; Any color will be available |
| Tool Box | One tool box with a set of standard trailer tools |
| Spare Tyre Carrier | One piece or two pieces |
