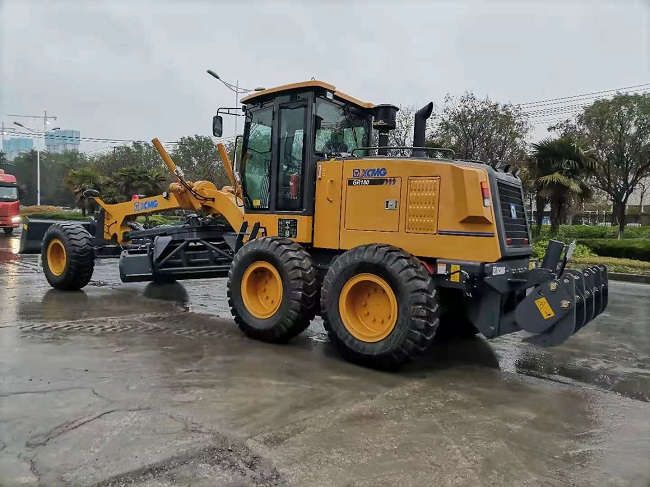

XCMG Motor Grader GR180 with Ripper Blade for Somalia, Congo

Price:

$59800-$62800 / EA

1 Unit / EA (Min. Order)

Payment Terms:

Delivery time: 7-10 Days

Shipping: Container Flat Rack Roro

Inquire Now Next Product

Product Description

GR180 Motor Grader
1. Dongfeng Cummins Engine, Hangzhou Advance Gearbox, and XCMG Drive Axle make the drive system power matching more reasonable and reliable.
2. Double-circuit hydraulic brake system makes the brake more reliable and stable;
3. Steering to the load sensing system, the main hydraulic components adopt international support to ensure the stability and reliability of the system;
4. Use XCMG special enhanced work devices;
5. The blade body adopts adjustable large chute and double slide mechanism, and the working blade adopts high-strength and wear-resistant material;
6. Various options expand the machine's performance and working range.

Main configuration:

* Engine: 142kw/ 2200rpm Cummins 6CTA8.3-C190-II, Euro II

* Blade specification: 3660 x 610 mm

* Operating weight: 15,400 kg

* Overall dimensions: 8900 x 2625 x 3420 mm


XCMG Motor Grader GR180 with Ripper Blade for Somalia, Congo

Specification

Engine Model		6CTA8.3-C190-Ⅱ
Rated Power/Speed		142/2200Kw(r/min)
Overall Dimension		8900x2625x3420mm
Total Weight		15400kg
Tire		17.5-25
Ground Clearance(front axle)		430mm
Tread		2156mm
Space of front & rear axle		6219mm
Forward Velocity		5/8/11/19/23/38Km/h
Reverse Speed		5/11/23Km/h
Maximum Gradeability		≥25%
Working System Pressure		18MPa
Tire Inflation Pressure		260kPa
Transmission Pressure		1.3-1.8MPa
Scrape Knife	Maximum Lift Height	450mm
	Maximum Cutting Depth	500mm
	Maximum tilt angle	90°
	Cutting Angle	28°- 90°
	Angle of Revolution	360°
	Length & Chord Height	3965x610mm
Coolant		50 L
Fuel Tank		280 L
Engine		24 L
Transmission		38 L
Drive Axle		28 L
Balancing Box		46 L
