Price:
$50960-$52960 / EA
1 Unit / EA (Min. Order)

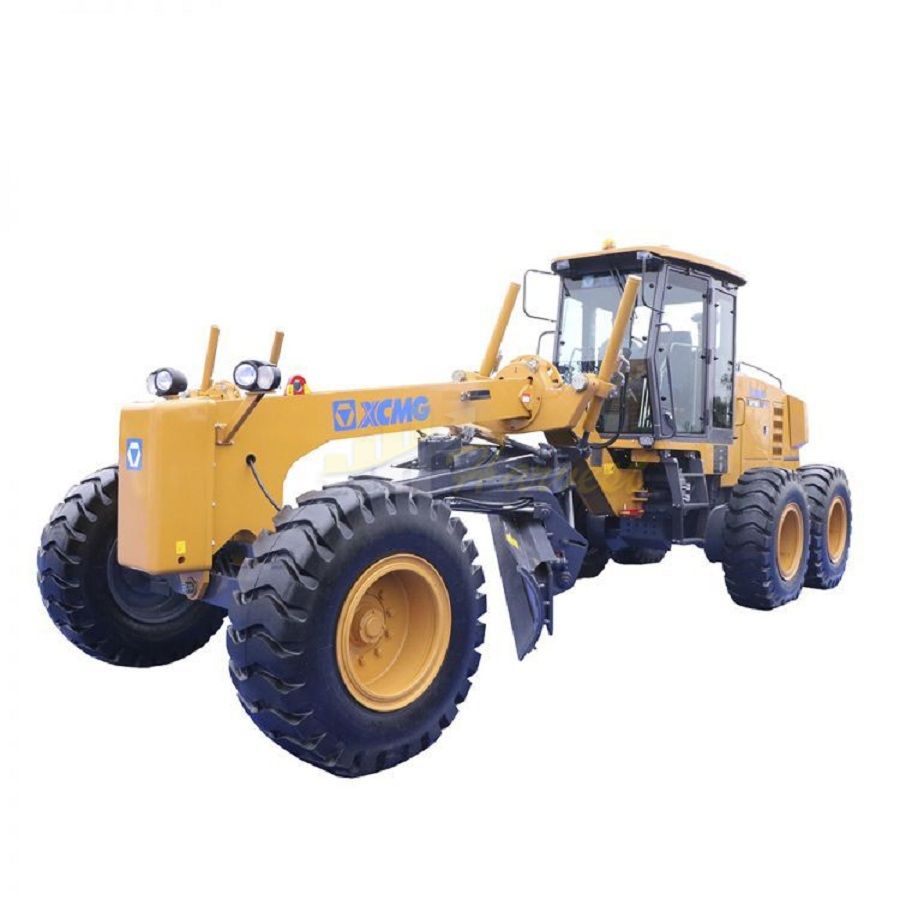

Product Description
The world's first swing structure, the life expectancy is increased to 10,000 hours.
the overall forged wheel hub, the load capacity increased by 40%, the life expectancy increased to 10,000 hours.
Heavy duty roller chain, improved reliability and longevity.
using "NO-SPIN" differential, life expectancy of 10,000 small.
the use of new wear-resistant bushings, low maintenance costs, long life.
the world's first single cylinder steering technology, small turning radius, long life.
all-inclusive luxury diamond cab.
the standard air conditioning integrated air conditioning, can meet the -30 ~ +50 environment.
A reasonable operating mechanism made the handling of the manpower is reduced by 30% and the maneuvering stroke is reduced by 25%.
Specification
Engine model | SC8D170G2B1SHANGCHAI |
Rated power/speed | 125kW/2200rpm |
Dimension(LxWxH) | 8900×2625×3470mm |
Operating weight(Standard) | 15000kg |
Performance specification | |
Travelling speed ,forward | 5,8,11,19,23,38 km/h |
Travelling speed ,reverse | 5,11,23 km/h |
Tractive force(f=0.75) | 77KN |
Max. gradeability | 20% |
Tire inflation pressure | 260 kPa |
Working hydraulic pressure | 16 MPa |
Transmission pressure | 1.3~1.8MPa |
Operating specification | |
Max. steering angle of front wheels | ±50° |
Max. lean angle of front wheels | ±17° |
Max. oscillation angle of front axle | ±15° |
Max. oscillation angle of balance box | 15 |
Frame articulation angle | ±27° |
Min. turning radius using articulation | 7.3m |
Blade | |
Maximum lift above ground | 450mm |
Maximum depth of cutting | 500mm |
Maximum blade position angle | 90° |
Blade cutting angle | 28°—70° |
Circle reversing rotation | 360° |
Moldboard width X height | 3965×610mm |
