Price:
Negotiable / EA
1 Unit / EA (Min. Order)
Product Description

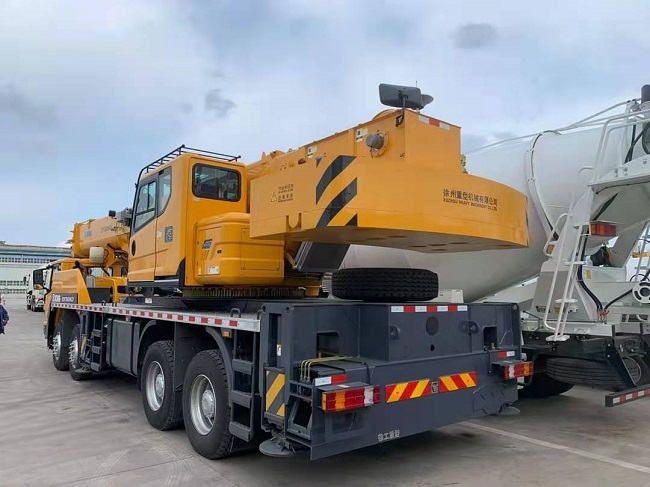

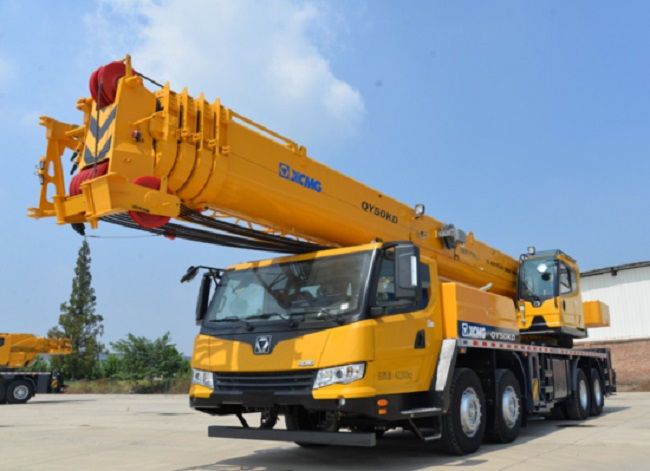

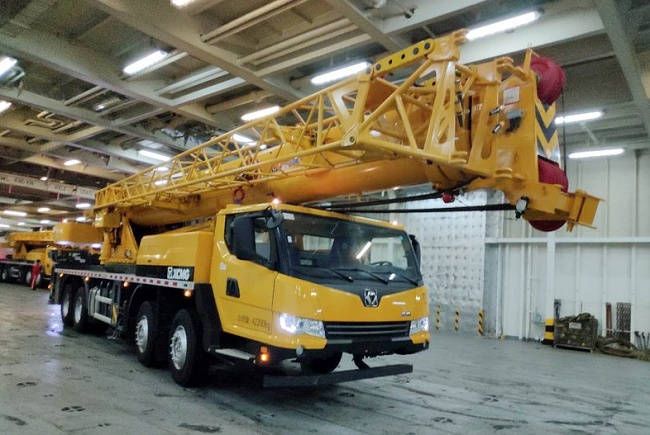

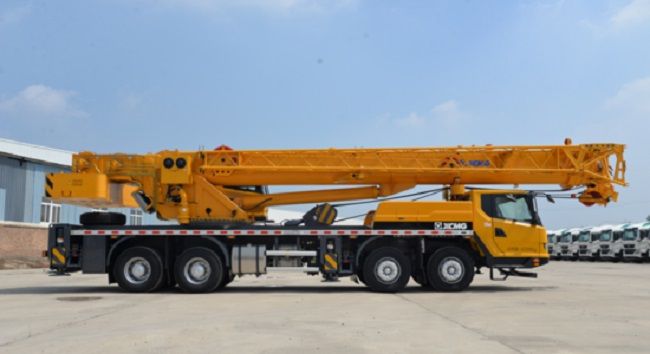

The 50-ton truck crane QY50KD is equipped with a 19.4m boom and a 10m range, and the rated lifting capacity reaches 14.2t.
Especially the high-frequency working condition capability of the market is more in line with the actual needs of lifting users; 10L, 380 horsepower engine power, excellent chassis power Responding to complex road conditions; K series classic hydraulic system, mature dual-pump splitting and merging control technology, make the product's operating efficiency and fretting better. And based on the classic inheritance of the K series, the KD series products will have certain advantages in terms of reliability and maintenance, and can spend less energy and use costs in the later stages of the product.
10L, 380 horsepower engine power, doers know what kind of complex construction sites they will face, the chassis power of QY50KD can help them easily deal with these situations.

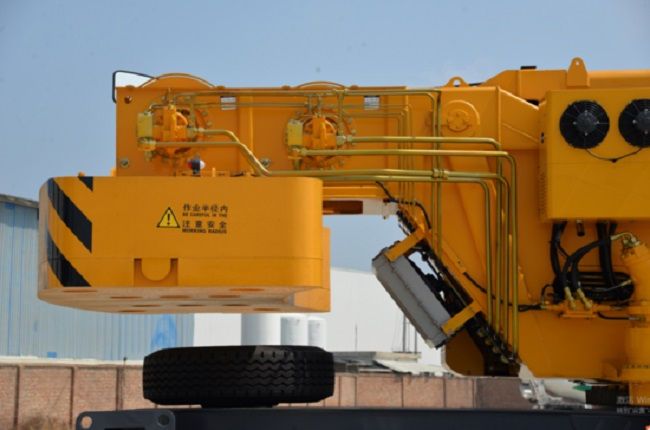

K series classic hydraulic system, mature dual-pump splitting and merging control technology
Specification
| Dimension | Unit | QY50KD |
| Overall length | mm | 14030 |
| Overall width | mm | 2800 |
| Overall height | mm | 3630 |
| Weight | ||
| Total weight in travel | kg | 42200 |
| 1/2 axle load | kg | 16200 |
| 3/4 axle load | kg | 26000 |
| Power of engine | ||
| Engine model | D10.38-50 | |
| Engine rated power | kW/(r/min) | 276/2000 |
| Engine rated torque | N.m/(r/min) | 1560/1200 |
| Specifications in Travel | ||
| Max. travel speed | km/h | 80 |
| Min. turning diameter | m | 24 |
| Min. ground clearance | mm | 327 |
| Approach angle | ° | 11 |
| Departure angle | ° | 15 |
| Max. grade ability | % | 45 |
| Fuel consumption for 100km | L | ≈40 |
| Main performance | ||
| Max. rated total lifting capacity | t | 50 |
| Min. rated working radius | mm | 3000 |
| Turning radius at turntable tail | m | 3.9 |
| Max. lifting torque | kN.m | 2009 |
| Base boom | m | 11.9 |
| Fully extended boom | m | 44 |
| Fully extended boom+jib | m | 58.1 |
| Longitudinal outrigger span | m | 6.1 |
| Lateral outrigger span | m | 7.1 |
| Working speed | ||
| Boom luffing time | s | 40 |
| Boom full extension time | s | 90 |
| Max. swing speed | r/min | 2 |
| Max. speed of main winch (single rope) (no load) | m/min | 130 |
| Max. speed of aux. winch (single rope) (no load) | m/min | 130 |
