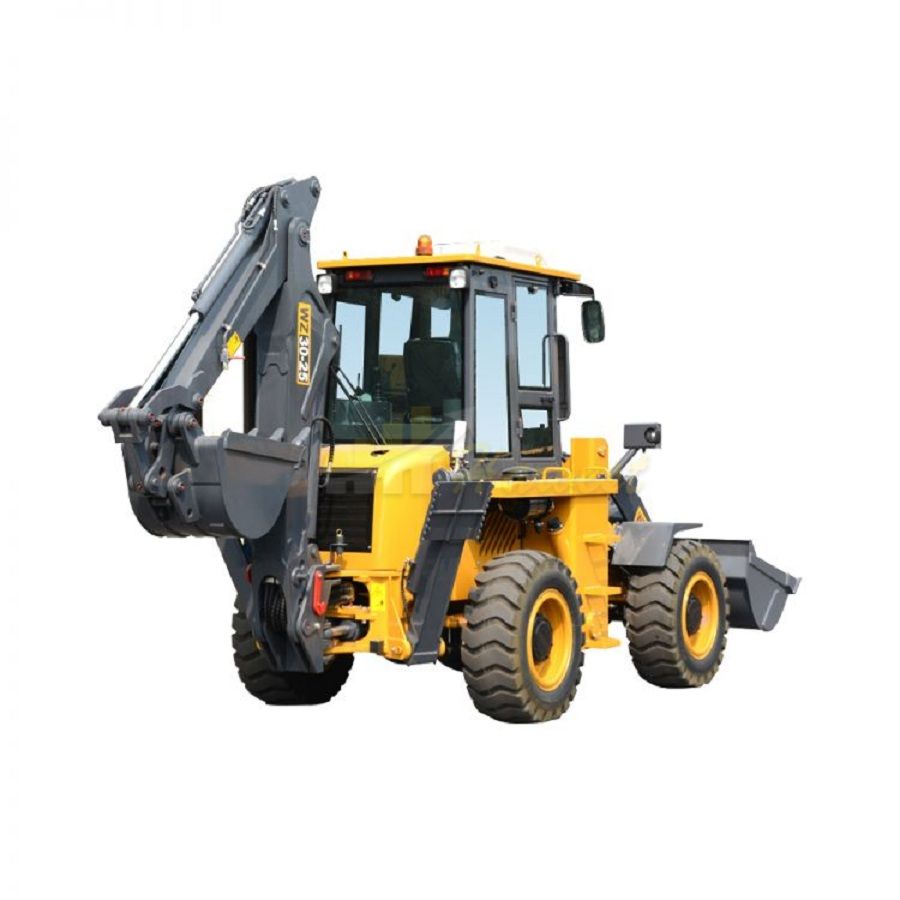

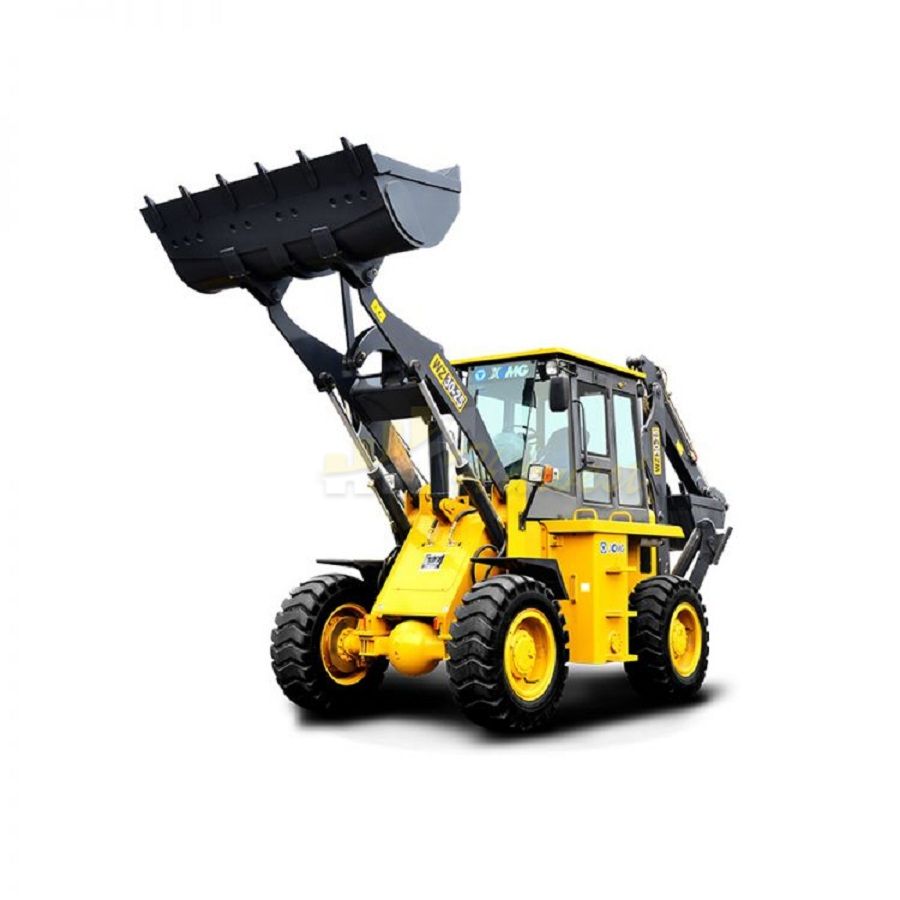

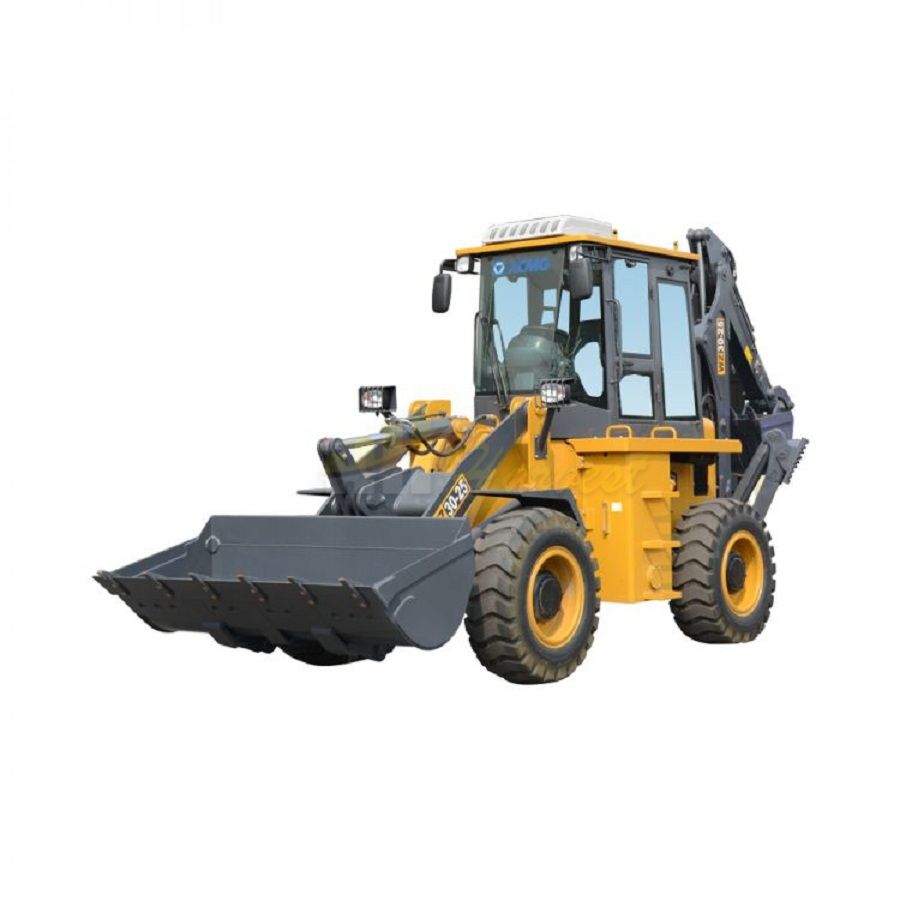

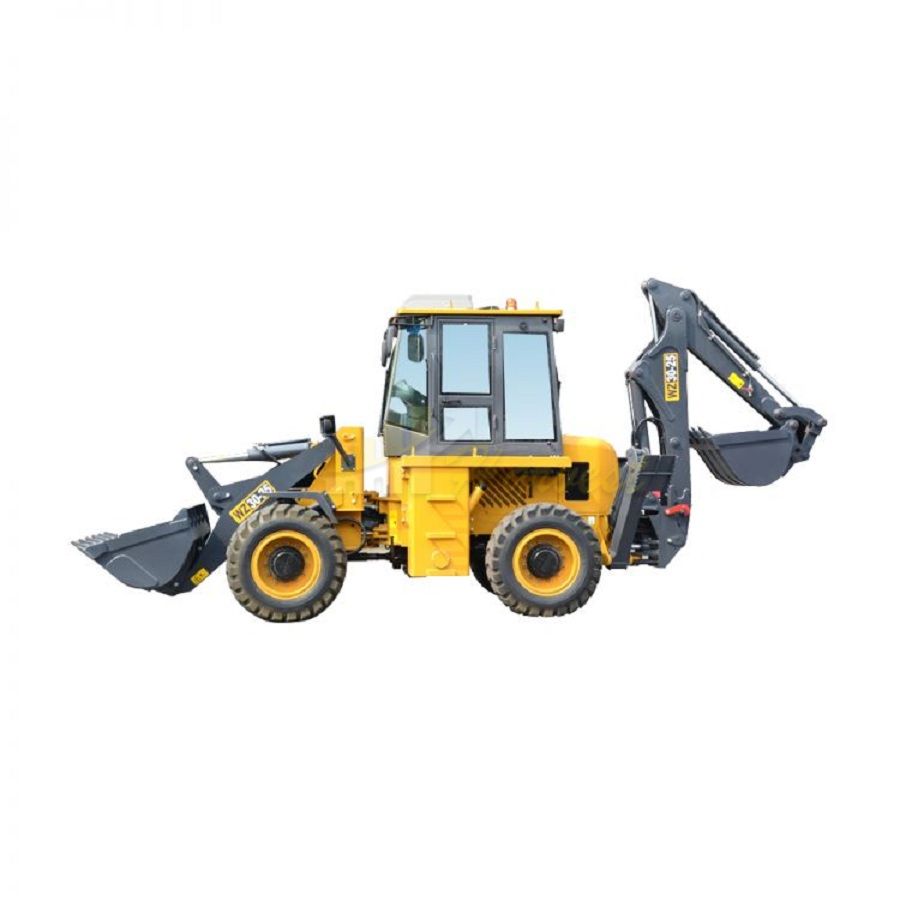

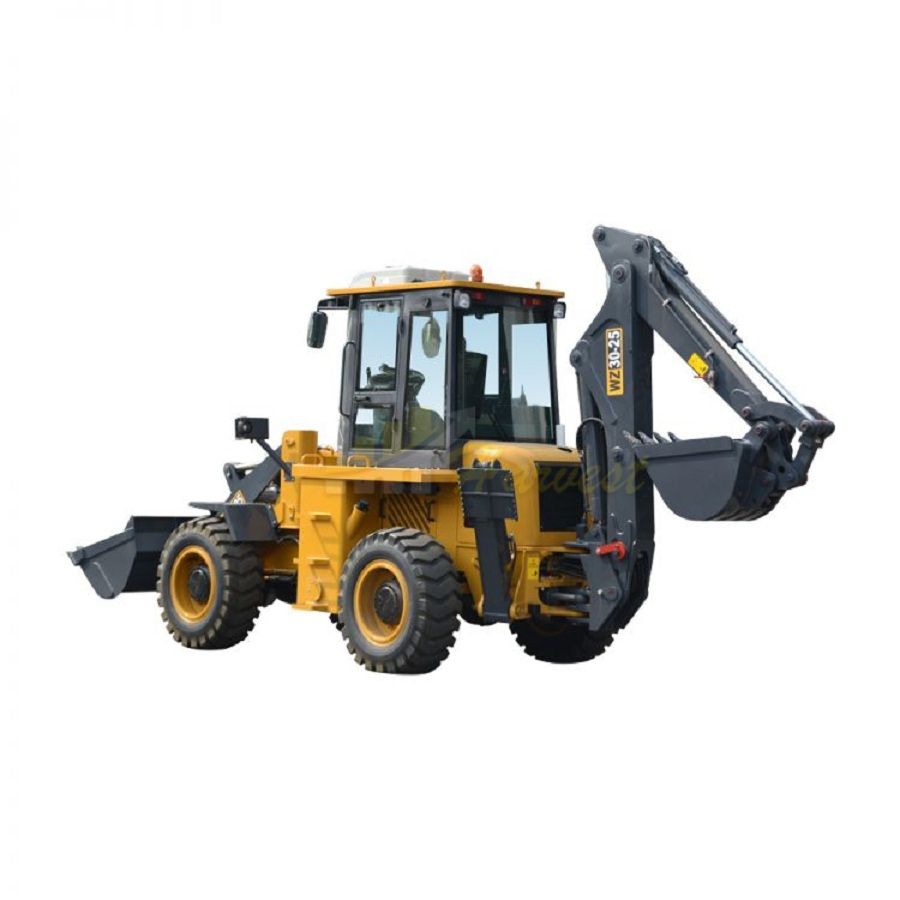

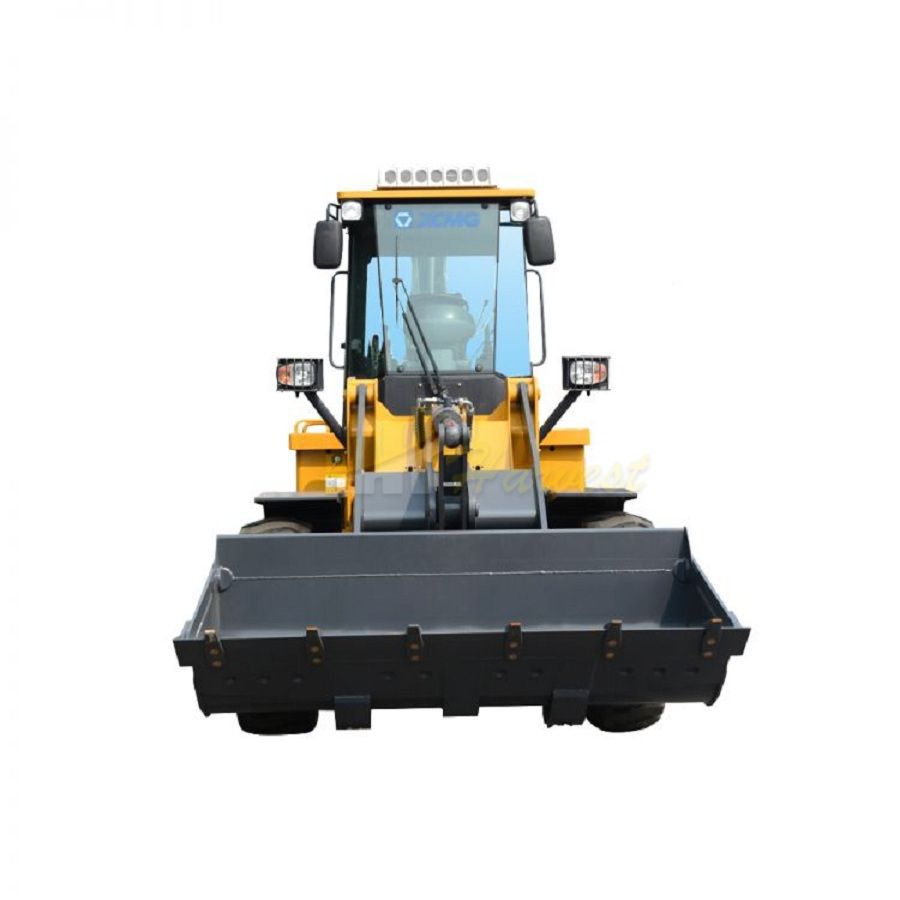

XCMG Backhoe Loader WZ30-25

Price:

$35,000-$40,000 / EA

1 Unit / EA (Min. Order)

Payment Terms:

Delivery time: 7-10 Days

Shipping: Container Flat Rack Roro

Inquire Now

Product Description

WZ30-25 Backhoe Loader

1. The WZ30-25 is a new multi-function engineering machine which gathering the loading and excavating in the integral whole machine.

2. It is the new generation model of the development based on the same kind product technique in domestic and international.

3. Having adopted four wheel drive, hydraulic torque converter, hydraulic steering system, hydraulic.

4. It is extensively used in the road maintenance, farms and developments, getting clay for making brick, piping builds, the cable builds, parking virescence and the excavating of the road opens to dig,breaking up.etc.

5. This machine has below characteristics: The Yuchai engine: low noise, low exhaust gas, low west, green environmental protection, driving motive, good reliability.

6. The spirit valve control take type brake system and parking brake system move two unite as one, when there is trouble in the gas brake system, it can make in time brake automatically, so it is more safety.


XCMG Backhoe Loader WZ30-25

Specification

Description	Specification	Unit
Bucket capacity	1.0	m³
Digging Capacity	0.3	m3
Dumping Clearance	2650	mm
Dumping Reach	930	mm
Max. steering angle	±35	°
Max. steering angle of dig working device	±85	°
Tracing Speed I/II/III/IV	0-6.2 / 0-12 / 0-20 / 0-30	Km/h
Back I/II	0-8 / 0-28.5	Km/h
Diesel Engine Model	YC4A110-T310/YC41390-T20
Modality	4-stroke water-cooled inline type/4-stroke water-cooled inline type
Rated Power	73.5 (Turbocharged)/65	kW
Rated Speed	2200	r/min
Wheel Base	2600	mm
Tread	1700	mm
Tyre size	17.5-25-12PR	16/70-24
Max.digging depth	4400	mm
Max.digging radium	5471	mm
Operating Weight	9500	kg
Overall Dimension	8000×2310×3424	mm
