Price:
$45,000-$49,800 / EA
1 Unit / EA (Min. Order)
Product Description

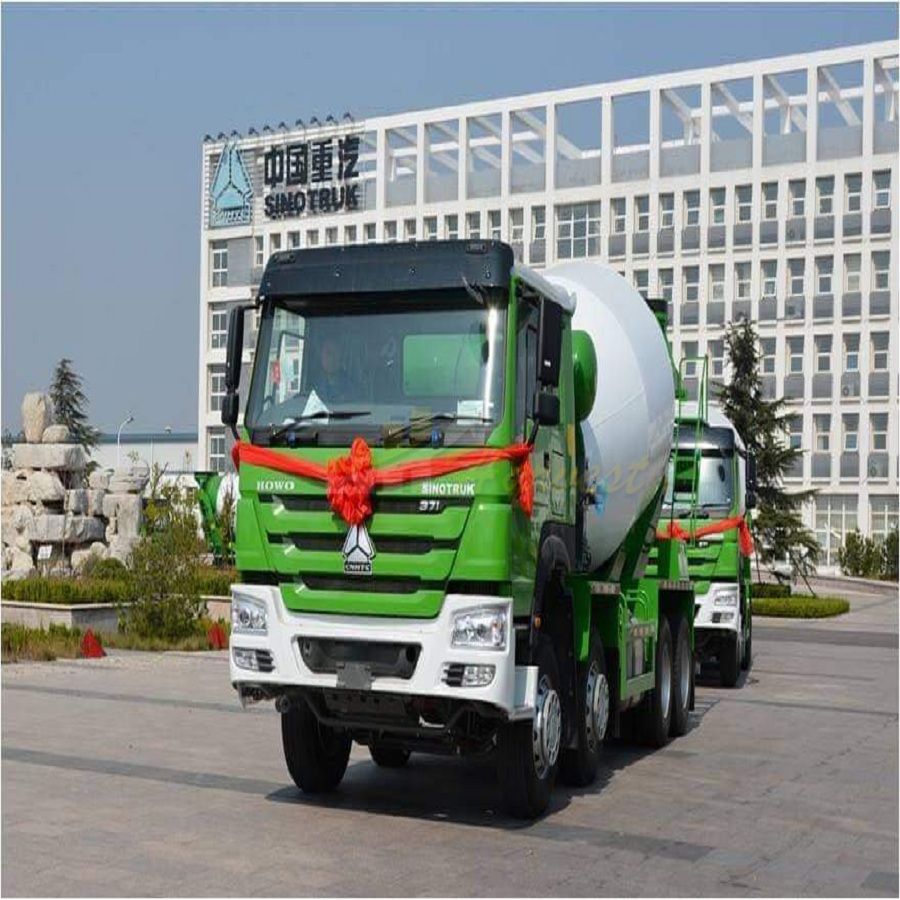

Concrete mixer truck (also called Transit mixer , concrete transport truck , construction vehicle , mixer truck , cement mixer , cement mixer truck , concrete mixer truck , volumetric mixer truck , Agitator truck . ) is made to transport and mix concrete up to the construction sit . The concrete mixing transport truck maintains the material's liquid state through agitation or turning of the drum until delivery .
For the construction place which has limited height and width requirement for the vehicle , Small concrete mixer trucks (2 m³ to 14m³) that are perfect for the demands .
SINOTRUK is one of the most professional mixer truck manufacturers and supplier in China, providing customized service with competitive price.
4m3, 6m3, 8m3, 9m3, 10m3 & 12m3 are available.
Specification
| Type | 12cubic meters concrete /cement mixer truck |
| Chassis model | ZZ1317N3847 |
| Dimension | 11335×2496×3980mm |
| Rated loading capacity | 13850kg |
| Wheel base | 1800+3800+1350mm |
| Tire specification | 12.00-20(13pcs) |
| Engine model | WD615.47(sino truck brand) |
| Power | 371HP |
| Emmission standard | Euro 2 |
| Fuel material | Diesel |
| Max speed | 90km/h |
| Feeding speed | ≥3m3/min |
| Output speed | ≥2m3/min |
| Speed reducer | Import from italy |
| Water box capacity | 300L |
| 8m3concrete mixer | Italy PV089 pump, MF089motor, 6SP Gearbox, China 12R radiator |
| 9m3concrete mixer | Italy PV089 pump, MF089motor, TOP P68 Gearbox, China 12L radiator |
| 10m3concreter\ mixer | Italy PV089 pump, MF089motor, TOP P68 Gearbox, China 12L Radiator |
| 11-12m3concrete mixer | Italy PV089 pump, MF089motor, TOP P75 Gearbox, China 12L Radiator |
| 14m3 concrete mixer | Italy PVA090 pump, MF090motor, TOP P75R or P80 Gearbox, China 25L or 26L Radiator |
| 16m3 concrete mixer | Italy PVA090 pump, MF090motor, TOP P80 Gearbox, China 25L or 26L Radiator |
| Mixer body material | 5mm or 6mm steel plate |
